Multitasking in iOS 7

Swift Talk

New on

We show our solutions to problems we find while building Swift projects. Enjoy a new episode of Swift Talk every week, packed with live-coding and discussions about the pros and cons of our decisions.

In this article

Prior to iOS 7, developers were pretty limited in what they could do when their apps left the foreground. Aside from VOIP and location-based features, the only way to execute code in the background was to use background tasks, restricted to running for a few minutes. If you wanted to download a large video for offline viewing, or backup a user’s photos to your server, you could only complete part of the work.

iOS 7 adds two new APIs for updating your app’s UI and content in the background. The first, Background Fetch, allows you to fetch new content from the network at regular intervals. The second, Remote Notifications, is a new feature leveraging Push Notifications to notify an app when an event has occurred. Both of these new mechanisms help you to keep your app’s interface up to date, and can schedule work on the new Background Transfer Service, which allows you to perform out-of-process network transfers (downloads and uploads).

Background Fetch and Remote Notifications are simple application delegate hooks with 30 seconds of wall-clock time to perform work before your app is suspended. They’re not intended for CPU intensive work or long running tasks, rather, they are for queuing up long-running networking requests, like a large movie download, or performing quick content updates.

From a user’s perspective, the only obvious change to multitasking is the new app switcher, which displays a snapshot of each app’s UI as it was when it left the foreground. But there’s a reason for displaying the snapshots – you can now update your app’s snapshot after you complete background work, showing a preview of new content. Social networking, news, or weather apps can now display the latest content without the user having to open the app. We’ll see how to update the snapshot later.

Background Fetch

Background Fetch is a kind of smart polling mechanism which works best for apps that have frequent content updates, like social networking, news, or weather apps. The system wakes up the app based on a user’s behavior, and aims to trigger background fetches in advance of the user launching the app. For example, if the user always uses an app at 1 p.m., the system learns and adapts, performing fetches ahead of usage periods. Background fetches are coalesced across apps by the device’s radio in order to reduce battery usage, and if you report that new data was not available during a fetch, iOS can adapt, using this information to avoid fetches at quiet times.

The first step in enabling Background Fetch is to specify that you’ll use the feature in the UIBackgroundModes key in your info plist. The easiest way to do this is to use the new Capabilities tab in Xcode 5’s project editor, which includes a Background Modes section for easy configuration of multitasking options.

A screenshot showing Xcode 5’s new Capabilities tab

Alternatively, you can edit the key manually:


Next, tell iOS how often you’d like to fetch:

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
    [application setMinimumBackgroundFetchInterval:UIApplicationBackgroundFetchIntervalMinimum];

    return YES;

The default fetch interval is never, so you’ll need to set a time interval or the app won’t ever be called in the background. The value of UIApplicationBackgroundFetchIntervalMinimum asks the system to manage when your app is woken, as often as possible, but you should specify your own time interval if this is unnecessary. For example, a weather app might only update conditions hourly. iOS will wait at least the specified time interval between background fetches.

If your application allows a user to logout, and you know that there won’t be any new data, you may want to set the minimumBackgroundFetchInterval back to UIApplicationBackgroundFetchIntervalNever to be a good citizen and to conserve resources.

The final step is to implement the following method in your application delegate:

- (void)                application:(UIApplication *)application
  performFetchWithCompletionHandler:(void (^)(UIBackgroundFetchResult))completionHandler
    NSURLSessionConfiguration *sessionConfiguration = [NSURLSessionConfiguration defaultSessionConfiguration];
    NSURLSession *session = [NSURLSession sessionWithConfiguration:sessionConfiguration];

    NSURL *url = [[NSURL alloc] initWithString:@""];
    NSURLSessionDataTask *task = [session dataTaskWithURL:url
                                        completionHandler:^(NSData *data, NSURLResponse *response, NSError *error) {

        if (error) {

        // Parse response/data and determine whether new content was available
        BOOL hasNewData = ...
        if (hasNewData) {
        } else {

    // Start the task
    [task resume];

This is where you can perform work when you are woken by the system. Remember, you only have 30 seconds to determine whether new content is available, to process the new content, and to update your UI. This should be enough time to fetch data from the network and to fetch a few thumbnails for your UI, but not much more. When your network requests are complete and your UI has been updated, you should call the completion handler.

The completion handler serves two purposes. First, the system measures the power used by your process and records whether new data was available based on the UIBackgroundFetchResult argument you passed. Second, when you call the completion handler, a snapshot of your UI is taken and the app switcher is updated. The user will see the new content when he or she is switching apps. This completion handler snapshotting behavior is common to all of the completion handlers in the new multitasking APIs.

In a real-world application, you should pass the completionHandler to sub-components of your application and call it when you’ve processed data and updated your UI.

At this point, you might be wondering how iOS can snapshot your app’s UI when it is running in the background, and how the application lifecycle works with Background Fetch. If your app is currently suspended, the system will wake it before calling application: performFetchWithCompletionHandler:. If your app is not running, the system will launch it, calling the usual delegate methods, including application: didFinishLaunchingWithOptions:. You can think of it as the app running exactly the same way as if the user had launched it from Springboard, except the UI is invisible, rendered offscreen.

In most cases, you’ll perform the same work when the application launches in the background as you would in the foreground, but you can detect background launches by looking at the applicationState property of UIApplication:

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
    NSLog(@"Launched in background %d", UIApplicationStateBackground == application.applicationState);

    return YES;

Testing Background Fetch

There are two ways you can simulate a background fetch. The easiest method is to run your application from Xcode and click Simulate Background Fetch under Xcode’s Debug menu while your app is running.

Alternatively, you can use a scheme to change how Xcode runs your app. Under the Xcode menu item Product, choose Scheme and then Manage Schemes. From here, edit or add a new scheme and check the Launch due to a background fetch event checkbox as shown below.

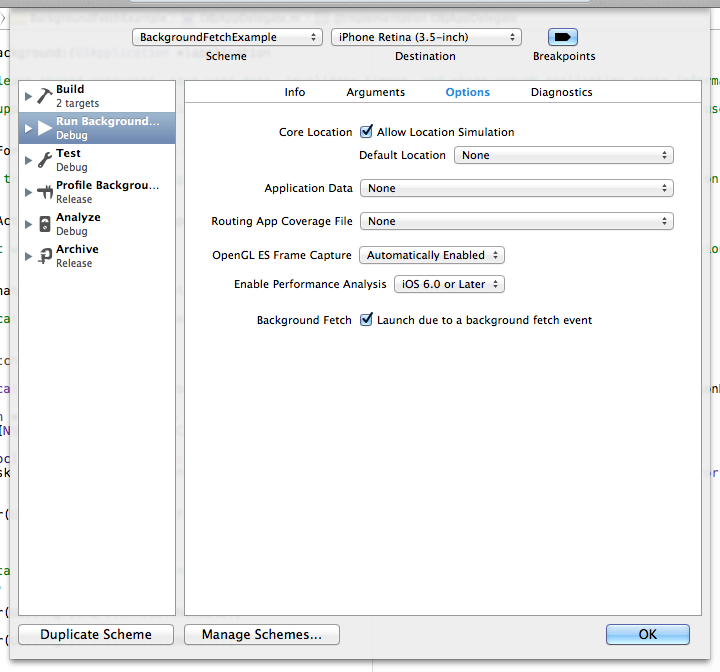

A screenshot showing Xcode 5’s scheme editor

Remote Notifications

Remote notifications allow you to notify your app when important events occur. You might have new instant messages to deliver, breaking news alerts to send, or the latest episode of your user’s favorite TV show ready for him or her to download for offline viewing. Remote notifications are great for sporadic but immediately important content, where the delay between background fetches might not be acceptable. Remote Notifications can also be much more efficient than Background Fetch, as your application only launches when necessary.

A Remote Notification is really just a normal Push Notification with the content-available flag set. You might send a push with an alert message informing the user that something has happened, while you update the UI in the background. But Remote Notifications can also be silent, containing no alert message or sound, used only to update your app’s interface or trigger background work. You might then post a local notification when you’ve finished downloading or processing the new content.

Silent push notifications are rate-limited, so don’t be afraid of sending as many as your application needs. iOS and the APNS servers will control how often they are delivered, and you won’t get into trouble for sending too many. If your push notifications are throttled, they might be delayed until the next time the device sends a keep-alive packet or receives another notification.

Sending Remote Notifications

To send a remote notification, set the content-available flag in a push notification payload. The content-available flag is the same key used to notify Newsstand apps, so most push scripts and libraries already support remote notifications. When you’re sending a Remote Notification, you might also want to include some data in the notification payload, so your application can reference the event. This could save you a few networking requests and increase the responsiveness of your app.

I recommend using Nomad CLI’s Houston utility to send push messages while developing, but you can use your favorite library or script.

You can install Houston as part of the nomad-cli ruby gem:

gem install nomad-cli

And then send a notification with the apn utility included in Nomad

# Send a Push Notification to your Device
apn push <device token> -c /path/to/key-cert.pem -n -d content-id=42

Here the -n flag specifies that the content-available key should be included, and -d allows us to add our own data keys to the payload.

The resulting notification payload looks like this:

    "aps" : {
        "content-available" : 1
    "content-id" : 42

iOS 7 adds a new application delegate method, which is called when a push notification with the content-available key is received:

- (void)           application:(UIApplication *)application
  didReceiveRemoteNotification:(NSDictionary *)userInfo
        fetchCompletionHandler:(void (^)(UIBackgroundFetchResult))completionHandler
    NSLog(@"Remote Notification userInfo is %@", userInfo);

    NSNumber *contentID = userInfo[@"content-id"];
    // Do something with the content ID

Again, the app is launched into the background and given 30 seconds to fetch new content and update its UI, before calling the completion handler. We could perform a quick network request as we did in the Background Fetch example, but let’s use the powerful new Background Transfer Service to enqueue a large download task and see how we can update our UI when it completes.

NSURLSession and Background Transfer Service

While NSURLSessionis a new class in iOS 7, it also refers to the new technology in Foundation networking. Intended to replace NSURLConnection, familiar concepts and classes such as NSURL, NSURLRequest, and NSURLResponse are preserved. You’ll work with NSURLConnection’s replacement, NSURLSessionTask, to make network requests and handle their responses. There are three types of session tasks – data, download, and upload – each of which add syntactic sugar to NSURLSessionTask, so you should use the appropriate one for your use case.

An NSURLSession coordinates one or more of these NSURLSessionTasks and behaves according to the NSURLSessionConfiguration with which it was created. You may create multiple NSURLSessions to group related tasks with the same configuration. To interact with the Background Transfer Service, you’ll create a session configuration using [NSURLSessionConfiguration backgroundSessionConfiguration]. Tasks added to a background session are run in an external process and continue even if your app is suspended, crashes, or is killed.

NSURLSessionConfiguration allows you to set default HTTP headers, configure cache policies, restrict cellular network usage, and more. One option is the discretionary flag, which allows the system to schedule tasks for optimal performance. What this means is that your transfers will only go over Wifi when the device has sufficient power. If the battery is low, or only a cellular connection is available, your task won’t run. The discretionary flag only has an effect if the session configuration object has been constructed by calling the backgroundSessionConfiguration: method and if the background transfer is initiated while your app is in the foreground. If the transfer is initiated from the background the transfer will always run in discretionary mode.

Now we know a little about NSURLSession, and how a background session functions, let’s return to our Remote Notification example and add some code to enqueue a download on the background transfer service. When the download completes, we’ll notify the user that the file is available for use.


First of all, let’s handle a Remote Notification and enqueue an NSURLSessionDownloadTask on the background transfer service. In backgroundURLSession, we create an NURLSession with a background session configuration and add our application delegate as the session delegate. The documentation advises against instantiating multiple sessions with the same identifier, so we use dispatch_once to avoid potential issues:

- (NSURLSession *)backgroundURLSession
    static NSURLSession *session = nil;
    static dispatch_once_t onceToken;
    dispatch_once(&onceToken, ^{
        NSString *identifier = @"io.objc.backgroundTransferExample";
        NSURLSessionConfiguration* sessionConfig = [NSURLSessionConfiguration backgroundSessionConfiguration:identifier];
        session = [NSURLSession sessionWithConfiguration:sessionConfig
                                           delegateQueue:[NSOperationQueue mainQueue]];

    return session;

- (void)           application:(UIApplication *)application
  didReceiveRemoteNotification:(NSDictionary *)userInfo
        fetchCompletionHandler:(void (^)(UIBackgroundFetchResult))completionHandler
    NSLog(@"Received remote notification with userInfo %@", userInfo);

    NSNumber *contentID = userInfo[@"content-id"];
    NSString *downloadURLString = [NSString stringWithFormat:@"", [contentID intValue]];
    NSURL* downloadURL = [NSURL URLWithString:downloadURLString];

    NSURLRequest *request = [NSURLRequest requestWithURL:downloadURL];
    NSURLSessionDownloadTask *task = [[self backgroundURLSession] downloadTaskWithRequest:request];
    task.taskDescription = [NSString stringWithFormat:@"Podcast Episode %d", [contentID intValue]];
    [task resume];


We create a download task using the NSURLSession class method and configure its request, and provide a description for use later. You must remember to call [task resume] to actually start the task, as all session tasks begin in the suspended state.

Now we need to implement the NSURLSessionDownloadDelegate methods to receive callbacks when the download completes. You may also need to implement NSURLSessionDelegate or NSURLSessionTaskDelegate methods if you need to handle authentication or other events in the session lifecycle. You should consult Apple’s document Life Cycle of a URL Session with Custom Delegates, which explains the full life cycle across all types of session tasks.

None of the NSURLSessionDownloadDelegate delegate methods are optional, though the only one where we need to take action in this example is [NSURLSession downloadTask:didFinishDownloadingToURL:]. When the task finishes downloading, you’re provided with a temporary URL to the file on disk. You must move or copy the file to your app’s storage, as it will be removed from temporary storage when you return from this delegate method.

#Pragma Mark - NSURLSessionDownloadDelegate

- (void)         URLSession:(NSURLSession *)session
               downloadTask:(NSURLSessionDownloadTask *)downloadTask
  didFinishDownloadingToURL:(NSURL *)location
    NSLog(@"downloadTask:%@ didFinishDownloadingToURL:%@", downloadTask.taskDescription, location);

    // Copy file to your app's storage with NSFileManager
    // ...

    // Notify your UI

- (void)  URLSession:(NSURLSession *)session
        downloadTask:(NSURLSessionDownloadTask *)downloadTask

- (void)         URLSession:(NSURLSession *)session
               downloadTask:(NSURLSessionDownloadTask *)downloadTask
               didWriteData:(int64_t)bytesWritten totalBytesWritten:(int64_t)totalBytesWritten

If your app is still running in the foreground when the background session task completes, the above code will be sufficient. In most cases, however, your app won’t be running, or it will be suspended in the background. In these cases, you must implement two application delegates methods so the system can wake your application. Unlike previous delegate callbacks, the application delegate is called twice, as your session and task delegates may receive several messages. The app delegate method application: handleEventsForBackgroundURLSession: is called before these NSURLSession delegate messages are sent, and URLSessionDidFinishEventsForBackgroundURLSession is called afterward. In the former method, you store a background completionHandler, and in the latter you call it to update your UI:

- (void)                  application:(UIApplication *)application
  handleEventsForBackgroundURLSession:(NSString *)identifier completionHandler:(void (^)())completionHandler
    // You must re-establish a reference to the background session,
    // or NSURLSessionDownloadDelegate and NSURLSessionDelegate methods will not be called
    // as no delegate is attached to the session. See backgroundURLSession above.
    NSURLSession *backgroundSession = [self backgroundURLSession];

    NSLog(@"Rejoining session with identifier %@ %@", identifier, backgroundSession);

    // Store the completion handler to update your UI after processing session events
    [self addCompletionHandler:completionHandler forSession:identifier];

- (void)URLSessionDidFinishEventsForBackgroundURLSession:(NSURLSession *)session
    NSLog(@"Background URL session %@ finished events.\n", session);

    if (session.configuration.identifier) {
        // Call the handler we stored in -application:handleEventsForBackgroundURLSession:
        [self callCompletionHandlerForSession:session.configuration.identifier];

- (void)addCompletionHandler:(CompletionHandlerType)handler forSession:(NSString *)identifier
    if ([self.completionHandlerDictionary objectForKey:identifier]) {
        NSLog(@"Error: Got multiple handlers for a single session identifier.  This should not happen.\n");

    [self.completionHandlerDictionary setObject:handler forKey:identifier];

- (void)callCompletionHandlerForSession: (NSString *)identifier
    CompletionHandlerType handler = [self.completionHandlerDictionary objectForKey: identifier];

    if (handler) {
        [self.completionHandlerDictionary removeObjectForKey: identifier];
        NSLog(@"Calling completion handler for session %@", identifier);


This two-stage process is necessary to update your app UI if you aren’t already in the foreground when the background transfer completes. Additionally, if the app is not running at all when the background transfer finishes, iOS will launch it into the background, and the preceding application and session delegate methods are called after application:didFinishLaunchingWithOptions:.

Configuration and Limitation

We’ve briefly touched on the power of background transfers, but you should explore the documentation and look at the NSURLSessionConfiguration options that best support your use case. For example, NSURLSessionTasks support resource timeouts through the NSURLSessionConfiguration’s timeoutIntervalForResource property. You can use this to specify how long you want to allow for a transfer to complete before giving up entirely. You might use this if your content is only available for a limited time, or if failure to download or upload the resource within the given timeInterval indicates that the user doesn’t have sufficient Wifi bandwidth.

In addition to download tasks, NSURLSession fully supports upload tasks, so you might upload a video to your server in the background and assure your user that he or she no longer needs to leave the app running, as might have been done in iOS 6. A nice touch would be to set the sessionSendsLaunchEvents property of your NSURLSessionConfiguration to NO, if your app doesn’t need launching in the background when the transfer completes. Efficient use of system resources keeps both iOS and the user happy.

Finally, there are a couple of limitations in using background sessions. As a delegate is required, you can’t use the simple block-based callback methods on NSURLSession. Launching your app into the background is relatively expensive, so HTTP redirects are always taken. The background transfer service only supports HTTP and HTTPS and you cannot use custom protocols. The system optimizes transfers based on available resources and you cannot force your transfer to progress in the background at all times.

Also note that NSURLSessionDataTasks are not supported in background sessions at all, and you should only use these tasks for short-lived, small requests, not for downloads or uploads.


The powerful new multitasking and networking APIs in iOS 7 open up a whole range of possibilities for both new and existing apps. Consider the use cases in your app which can benefit from out-of-process network transfers and fresh data, and make the most of these fantastic new APIs. In general, implement background transfers as if your application is running in the foreground, making appropriate UI updates, and most of the work is already done for you.

  • Use the appropriate new API for your app’s content.
  • Be efficient, and call completion handlers as early as possible.
  • Completion handlers update your app’s UI snapshot.

Further Reading
